Note

Currently, the documentation for static class members is missing due to a potential pybind11 bug.

This affects the predefined colors, e.g. Color.Magenta, but also the special members, i.e. Color.Invalid and Color.Same. Usage of these special members is documented in the docstrings of the drawing functions (of the Painter), wherever they are supported.

Defining Colors

`viren2d.Color`	A color in rgba format, i.e. \(r,g,b,a \in [0,1]\).
`viren2d.axis_color`	Returns a default color for the \(x\), \(y\), or \(z\) axis.
`viren2d.color_from_object_category`	Alias of `viren2d.Color.from_object_category()`.
`viren2d.color_from_object_id`	Alias of `viren2d.Color.from_object_id()`.
`viren2d.color_names`	Returns a list of the predefined color names.
`viren2d.fade_out_linear`	Color transition function for `viren2d.Painter.draw_trajectory()`.
`viren2d.fade_out_logarithmic`	Color transition function for `viren2d.Painter.draw_trajectory()`.
`viren2d.fade_out_quadratic`	Color transition function for `viren2d.Painter.draw_trajectory()`.
`viren2d.object_category_names`	Alias of `viren2d.Color.object_category_names()`.
`viren2d.rgba`	Creates a `Color` from \(r,g,b,a \in [0,1]\).
`viren2d.RGBa`	Creates a `Color` from \(R,G,B \in [0, 255]\) and alpha \(a \in [0, 1]\).

Color Class

Color definitions are handled via the Color class in rgba format, where \(r, g, b, a \in [0, 1]\).

class viren2d.Color

A color in rgba format, i.e. \(r,g,b,a \in [0,1]\).

Corresponding C++ API: viren2d::Color.

Important

If you initialize a color from a (r,g,b,a) tuple, you must ensure that \(r,g,b,a \in [0, 1]\).

This is due to the saturation cast performed by Color. For example, the following tuple will be converted to (1, 1, 1), i.e. the polygon would be actually filled with white!

>>> # Mistakenly specifying a color as `RGB` tuple instead of `rgb`:
>>> painter.draw_polygon(..., fill_color=(20, 20, 75))

To specify a color as RGB, use RGBa() instead:

>>> # Correctly specifying a color as `RGB`:
>>> painter.draw_polygon(..., fill_color=viren2d.RGBa(20, 20, 75))

Attributes:

`Black`
`Blue`
`Cyan`
`Green`
`Invalid`
`Magenta`
`Red`
`Same`
`White`
`Yellow`
`alpha`	Opacity \(\in [0, 1]\), where 0 is fully transparent and 1 is fully opaque.
`blue`	Blue component \(\in [0, 1]\).
`green`	Green component \(\in [0, 1]\).
`red`	Red component \(\in [0, 1]\).

Methods:

`__add__`	Operator `lhs + rhs`.
`__eq__`	Checks for equality.
`__getstate__`
`__iadd__`	Operator `+=`.
`__imul__`	Operator `*= float`.
`__init__`	Overloaded function.
`__isub__`	Operator `-=`.
`__itruediv__`	Operator `/= float`.
`__mul__`	Operator `Color * float`.
`__ne__`	Checks for inequality.
`__rmul__`	Operator `float * Color`.
`__setstate__`	`Color` instances can be pickled.
`__sub__`	Operator `lhs - rhs`.
`__truediv__`	Operator `Color / float`.
`copy`	Returns a deep copy.
`from_hsv`	Creates a `Color` from its HSV representation.
`from_object_category`	Returns a color for the given category name.
`from_object_id`	Returns a color for the (numeric) object ID.
`intensity`	Returns the grayscale intensity as \(l = 0.2989r + 0.5870g + 0.1141*b\).
`inverse`	Returns the inverse/complementary color.
`is_shade_of_gray`	Checks if the r,g,b values are almost equal, i.e. within \(\pm \epsilon\).
`is_valid`	Returns `True` if this is a valid rgba color, where all components are \(\in [0, 1]\).
`object_category_names`	Returns a list of the category names which are explicitly known to `from_object_category()`.
`to_RGB`	Returns the corresponding \((R, G, B)\) tuple.
`to_RGBa`	Returns the corresponding \((R, G, B, \alpha)\) tuple.
`to_gray`	Returns the grayscale representation of this color.
`to_hex`	Returns the hex code representation.
`to_hsv`	Returns the corresponding `(h, s, v)` tuple.
`to_rgb`	Returns the corresponding `(r, g, b)` tuple.
`to_rgba`	Returns the corresponding `(r, g, b, a)` tuple.
`with_alpha`	Returns a color with the same \(r,g,b\) components, but the given \(\alpha\).

Black = viren2d.Color(red=0, green=0, blue=0, alpha=1)

Blue = viren2d.Color(red=0, green=0, blue=1, alpha=1)

Cyan = viren2d.Color(red=0, green=1, blue=1, alpha=1)

Green = viren2d.Color(red=0, green=1, blue=0, alpha=1)

Invalid = viren2d.Color.Invalid

Magenta = viren2d.Color(red=1, green=0, blue=1, alpha=1)

Red = viren2d.Color(red=1, green=0, blue=0, alpha=1)

Same = viren2d.Color.Same

White = viren2d.Color(red=1, green=1, blue=1, alpha=1)

Yellow = viren2d.Color(red=1, green=1, blue=0, alpha=1)

__add__(self: viren2d.Color, rhs: viren2d.Color) → viren2d.Color

Operator lhs + rhs.

Adds the rgba values of the two Color instances (lhs and rhs) and performs a saturating cast, i.e. the resulting rgba values will be clamped to [0, 1].

__eq__(self: viren2d.Color, other: viren2d.Color) → bool

Checks for equality.

Returns True if all components are equal.

__getstate__(self: viren2d.Color) → tuple

__iadd__(self: viren2d.Color, other: viren2d.Color) → viren2d.Color

Operator +=.

Adds the other Color rgba values and performs a saturation cast, i.e. the resulting rgba values will be clamped to [0, 1].

__imul__(self: viren2d.Color, scale: float) → viren2d.Color

Operator *= float.

Scales all components by the given scalar factor and performs a saturating cast, i.e. the resulting rgba values will be clamped to [0, 1].

__init__(*args, **kwargs)

Overloaded function.

__init__(self: viren2d.Color) -> None

Initializes an invalid color.

An invalid color, i.e. r,g,b < 0, can be used in several Painter methods to mark special color handling, e.g. to skip filling of a shape.

This constructor additionally allows the implicit conversion of None to an invalid color.
__init__(self: viren2d.Color, arg0: None) -> None

A None will be interpreted as an invalid color.

An invalid color, i.e. r,g,b < 0, can be used in several Painter methods to mark special color handling, e.g. to skip filling.
__init__(self: viren2d.Color, tpl: tuple) -> None
Initializes the color from a r,g,b or r,g,b,a tuple.

Each value must be a floating point number within [0, 1]. The alpha value will be set to 1 if not provided.
Example:
>>> painter.draw_polygon(..., fill_color = (red, green, blue)) >>> painter.draw_polygon(..., fill_color = (red, green, blue, alpha)
__init__(self: viren2d.Color, red: float, green: float, blue: float, alpha: float = 1.0) -> None

Initializes the color from the given rgba components.

All values will be clamped to [0, 1].
__init__(self: viren2d.Color, colorspec: str, alpha: float = 1.0) -> None
Initializes the color from a string representation (hexcode or color name).
Hexcode:
HTML hex code string as either #RRGGBB or #RRGGBBAA:

>>> painter.draw_rect(..., fill_color = '#00ff00') >>> painter.draw_rect(..., fill_color = '#a0b0c0f0')
Color name:

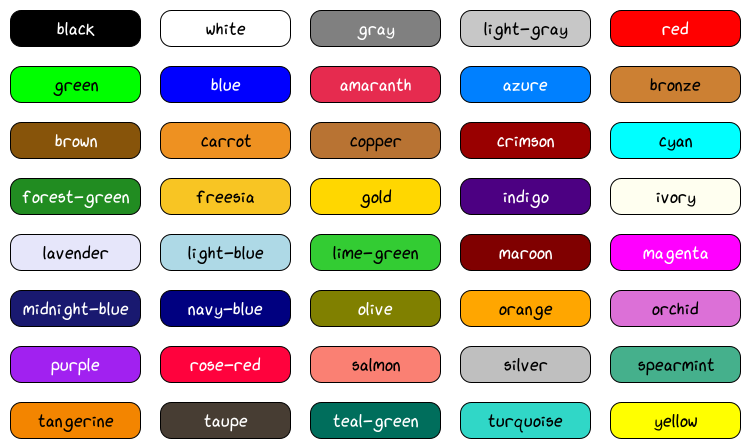

See color_names() for a list of available color names.

>>> painter.draw_rect(..., fill_color = 'black') >>> painter.draw_rect(..., fill_color = 'navy-blue')

A color name can also include an alpha suffix, which must be specified as integer in [0, 100]):

>>> painter.draw_rect(..., fill_color = 'forest-green!50')

Color names can also be inverted by prepending either ! or -, which results in the complementary color, e.g. !blue!30 is the same as yellow!30:

>>> painter.draw_rect(..., fill_color = '!blue!30)

__isub__(self: viren2d.Color, other: viren2d.Color) → viren2d.Color

Operator -=.

Subtracts the other Color rgba values and performs a saturating cast, i.e. the resulting rgba values will be clamped to [0, 1].

__itruediv__(self: viren2d.Color, rhs: float) → viren2d.Color

Operator /= float.

Divides all components of this Color by the right-hand side scalar factor and performs a saturating cast, i.e. the resulting rgba values will be clamped to [0, 1].

__mul__(self: viren2d.Color, rhs: float) → viren2d.Color

Operator Color * float.

Scales all components of the left-hand side Color by the right-hand side scalar factor and performs a saturating cast, i.e. the resulting rgba values will be clamped to [0, 1].

__ne__(self: viren2d.Color, other: viren2d.Color) → bool

Checks for inequality.

Returns True if any components differ.

__rmul__(self: viren2d.Color, lhs: float) → viren2d.Color

Operator float * Color.

Scales all components of the right-hand side Color by the left-hand side scalar factor and performs a saturating cast, i.e. the resulting rgba values will be clamped to [0, 1].

__setstate__(self: viren2d.Color, arg0: tuple) → None: Color instances can be pickled.

__sub__(self: viren2d.Color, rhs: viren2d.Color) → viren2d.Color

Operator lhs - rhs.

Subtracts the rgba values of the Color instance rhs from lhs and performs a saturating cast, i.e. the resulting rgba values will be clamped to [0, 1].

__truediv__(self: viren2d.Color, rhs: float) → viren2d.Color

Operator Color / float.

Divides all components of the lef-hand side Color by the right-hand side scalar factor and performs a saturating cast, i.e. the resulting rgba values will be clamped to [0, 1].

property alpha

Opacity \(\in [0, 1]\), where 0 is fully transparent and 1 is fully opaque.

Corresponding C++ API: viren2d::Color::alpha.

Type:: float

property blue

Blue component \(\in [0, 1]\).

Corresponding C++ API: viren2d::Color::blue.

Type:: float

copy(self: viren2d.Color) → viren2d.Color

Returns a deep copy.

Corresponding C++ API: Copy constructor of viren2d::Color.

static from_hsv(h: float, s: float, v: float, alpha: float = 1.0) → viren2d.Color

Creates a Color from its HSV representation.

Parameters:

h – Hue, \(h \in [0, 360]\).
s – Saturation, \(s \in [0, 1]\).
v – Value, \(v \in [0, 1]\).
alpha – Optional opacity of the color, \(\alpha \in [0, 1]\).

Corresponding C++ API: viren2d::ColorFromHSV.

static from_object_category(category: str, colormap: viren2d.ColorMap = viren2d.ColorMap('glasbey-dark')) → viren2d.Color

Returns a color for the given category name.

Allows coloring the same object class consistently, e.g. to distinguish multiple classes, such as car or person.

Corresponding C++ API: viren2d::Color::FromObjectCategory.

Parameters:

category – The category name as str. See object_category_names() for a list of category names which are explicitly defined. For any other category name, a string hash will be computed, which is then used to lookup a corresponding color.
colormap – Optionally, select a different categorical ColorMap. This parameter can be specified both via the enumeration value and the color map’s string representation.

Currently, the following category names are available. The shown colors are from the default color map:

airplane	apple	background	backpack
banana	baseball-bat	baseball-glove	bear
bed	bench	bicycle	bird
boat	book	bottle	bowl
broccoli	bus	cake	car
carrot	cat	cell-phone	chair
clock	couch	cow	cup
dining-table	dog	donut	elephant
fire-hydrant	fork	frisbee	giraffe
hair-drier	handbag	horse	hot-dog
human	keyboard	kite	knife
laptop	microwave	motorcycle	mouse
orange	oven	parking-meter	pedestrian
person	pizza	potted-plant	refrigerator
remote	sandwich	scissors	sheep
sink	skateboard	skis	smartphone
snowboard	spoon	sports-ball	stop-sign
suitcase	surfboard	teddy-bear	tennis-racket
tie	toaster	toilet	toothbrush
traffic-light	train	truck	tv
umbrella	vase	vehicle	wine-glass
zebra

static from_object_id(id: int, colormap: viren2d.ColorMap = viren2d.ColorMap('glasbey-dark')) → viren2d.Color

Returns a color for the (numeric) object ID.

Allows coloring the same object instance consistently, e.g. when tracking objects.

Corresponding C++ API: viren2d::Color::FromObjectId.

Parameters:

id – The object id as int. Note that it must be \(\geq 0\), or a TypeError will be raised.
colormap – Optionally, select a different categorical ColorMap. This parameter can be specified both via the enumeration value and the color map’s string representation.

With the default color map, these are the colors for the first 42 object IDs:

0	1	2	3	4	5	6
7	8	9	10	11	12	13
14	15	16	17	18	19	20
21	22	23	24	25	26	27
28	29	30	31	32	33	34
35	36	37	38	39	40	41

property green

Green component \(\in [0, 1]\).

Corresponding C++ API: viren2d::Color::green.

Type:: float

intensity(self: viren2d.Color) → float

Returns the grayscale intensity as \(l = 0.2989*r + 0.5870*g + 0.1141*b\).

Corresponding C++ API: viren2d::Color::GrayscaleIntensity.

inverse(self: viren2d.Color) → viren2d.Color

Returns the inverse/complementary color.

Except for shades of gray, this returns \((1 - r, 1 - g, 1 - b, a)\). For gray values, it will either return black or white. In any case, the returned alpha value will stay the same.

Why special handling of gray?: Complementary colors should be used to provide good contrast/highlights. For colors close to medium gray (where r,g,b are close to 0.5), the rgb inverse would not be too useful.

Corresponding C++ API: viren2d::Color::Inverse.

is_shade_of_gray(self: viren2d.Color, eps: float = 0.02) → bool

Checks if the r,g,b values are almost equal, i.e. within \(\pm \epsilon\).

Corresponding C++ API: viren2d::Color::IsShadeOfGray.

is_valid(self: viren2d.Color) → bool

Returns True if this is a valid rgba color, where all components are \(\in [0, 1]\).

Corresponding C++ API: viren2d::Color::IsValid.

static object_category_names() → List[str]

Returns a list of the category names which are explicitly known to from_object_category().

Corresponding C++ API: viren2d::Color::ListObjectCategories.

This category list contains all (80+1) COCO classes (incl. background), plus additional aliases, e.g. human\(\leftrightarrow\)person, or vehicle\(\leftrightarrow\)car.

Currently, the following category names are available. The shown colors are from the default color map used in from_object_category():

airplane	apple	background	backpack
banana	baseball-bat	baseball-glove	bear
bed	bench	bicycle	bird
boat	book	bottle	bowl
broccoli	bus	cake	car
carrot	cat	cell-phone	chair
clock	couch	cow	cup
dining-table	dog	donut	elephant
fire-hydrant	fork	frisbee	giraffe
hair-drier	handbag	horse	hot-dog
human	keyboard	kite	knife
laptop	microwave	motorcycle	mouse
orange	oven	parking-meter	pedestrian
person	pizza	potted-plant	refrigerator
remote	sandwich	scissors	sheep
sink	skateboard	skis	smartphone
snowboard	spoon	sports-ball	stop-sign
suitcase	surfboard	teddy-bear	tennis-racket
tie	toaster	toilet	toothbrush
traffic-light	train	truck	tv
umbrella	vase	vehicle	wine-glass
zebra

property red

Red component \(\in [0, 1]\).

Corresponding C++ API: viren2d::Color::red.

Type:: float

to_RGB(self: viren2d.Color) → Tuple[int, int, int]

Returns the corresponding \((R, G, B)\) tuple.

Each element \(R, G, B \in [0, 255]\) will be of type int.

Corresponding C++ API: viren2d::Color::ToRGB.

to_RGBa(self: viren2d.Color) → Tuple[int, int, int, float]

Returns the corresponding \((R, G, B, \alpha)\) tuple.

The color components will be of type int, with \(R, G, B \in [0, 255]\), whereas \(\alpha \in [0, 1]\) is of type float.

Corresponding C++ API: viren2d::Color::ToRGBa.

to_gray(self: viren2d.Color) → viren2d.Color

Returns the grayscale representation of this color.

The \(r,g,b\) components of the returned color will be set to the luminance, \(l = 0.2989*r + 0.5870*g + 0.1141*b\), and \(\alpha\) will stay the same.

Corresponding C++ API: viren2d::Color::ToGray.

to_hex(self: viren2d.Color, with_alpha: bool = False) → str

Returns the hex code representation.

If with_alpha is True, the returned string representation will contain 8 digits (+ 1 character for the leading #), and 6 digits otherwise. To compute the hexadecimal representation, each component, i.e. r,g,b and optionally a, is first scaled to [0, 255].

Corresponding C++ API: viren2d::Color::ToHexString.

Parameters:: with_alpha – Boolean flag whether to include the alpha value or not.

to_hsv(self: viren2d.Color) → Tuple[float, float, float]

Returns the corresponding (h, s, v) tuple.

Each tuple element will be of type float, with \(h \in [0, 360]\), \(s \in [0, 1]\) and \(v \in [0, 1]\).

Corresponding C++ API: viren2d::Color::ToHSV.

to_rgb(self: viren2d.Color) → tuple

Returns the corresponding (r, g, b) tuple.

Each tuple element will be of type float, with \(r,g,b \in [0, 1]\).

No corresponding C++ API, access red, green, blue separately.

to_rgba(self: viren2d.Color) → tuple

Returns the corresponding (r, g, b, a) tuple.

Each tuple element will be of type float, with \(r,g,b,a \in [0, 1]\).

No corresponding C++ API, access red, green, blue and alpha separately.

with_alpha(self: viren2d.Color, alpha: float) → viren2d.Color

Returns a color with the same \(r,g,b\) components, but the given \(\alpha\).

Corresponding C++ API: viren2d::Color::WithAlpha.

Parameters:: alpha – Opacity as float \(\in [0, 1]\).

Color Names

There are several predefined colors which can be initialized via their name string:

viren2d.color_names() → List[str]

Returns a list of the predefined color names.

Each of these names can be used to initialize a Color. For example:

>>> text_style.color = 'midnight-blue'    # alpha = 1.0
>>> line_style.color = 'forest-green!40'  # alpha = 0.4

Corresponding C++ API: viren2d::ListNamedColors.

Currently, the following color names are available:

Name	Hex code	RGB	rgb
black	#000000	(0, 0, 0)	(0.00, 0.00, 0.00)
white	#ffffff	(255, 255, 255)	(1.00, 1.00, 1.00)
gray	#7f7f7f	(127, 127, 127)	(0.50, 0.50, 0.50)
light-gray	#c6c6c6	(198, 198, 198)	(0.78, 0.78, 0.78)
red	#ff0000	(255, 0, 0)	(1.00, 0.00, 0.00)
green	#00ff00	(0, 255, 0)	(0.00, 1.00, 0.00)
blue	#0000ff	(0, 0, 255)	(0.00, 0.00, 1.00)
amaranth	#e52b4f	(229, 43, 79)	(0.90, 0.17, 0.31)
azure	#007fff	(0, 127, 255)	(0.00, 0.50, 1.00)
bronze	#cc7f33	(204, 127, 51)	(0.80, 0.50, 0.20)
brown	#87540a	(135, 84, 10)	(0.53, 0.33, 0.04)
carrot	#ed9121	(237, 145, 33)	(0.93, 0.57, 0.13)
copper	#b77233	(183, 114, 51)	(0.72, 0.45, 0.20)
crimson	#990000	(153, 0, 0)	(0.60, 0.00, 0.00)
cyan	#00ffff	(0, 255, 255)	(0.00, 1.00, 1.00)
forest-green	#218c21	(33, 140, 33)	(0.13, 0.55, 0.13)
freesia	#f7c423	(247, 196, 35)	(0.97, 0.77, 0.14)
gold	#ffd600	(255, 214, 0)	(1.00, 0.84, 0.00)
indigo	#4c0082	(76, 0, 130)	(0.30, 0.00, 0.51)
ivory	#ffffef	(255, 255, 239)	(1.00, 1.00, 0.94)
lavender	#e5e5f9	(229, 229, 249)	(0.90, 0.90, 0.98)
light-blue	#add8e5	(173, 216, 229)	(0.68, 0.85, 0.90)
lime-green	#33cc33	(51, 204, 51)	(0.20, 0.80, 0.20)
maroon	#7f0000	(127, 0, 0)	(0.50, 0.00, 0.00)
magenta	#ff00ff	(255, 0, 255)	(1.00, 0.00, 1.00)
midnight-blue	#191970	(25, 25, 112)	(0.10, 0.10, 0.44)
navy-blue	#00007f	(0, 0, 127)	(0.00, 0.00, 0.50)
olive	#7f7f00	(127, 127, 0)	(0.50, 0.50, 0.00)
orange	#ffa500	(255, 165, 0)	(1.00, 0.65, 0.00)
orchid	#db70d6	(219, 112, 214)	(0.86, 0.44, 0.84)
purple	#a021ef	(160, 33, 239)	(0.63, 0.13, 0.94)
rose-red	#ff023d	(255, 2, 61)	(1.00, 0.01, 0.24)
salmon	#f97f72	(249, 127, 114)	(0.98, 0.50, 0.45)
silver	#bfbfbf	(191, 191, 191)	(0.75, 0.75, 0.75)
spearmint	#44af8c	(68, 175, 140)	(0.27, 0.69, 0.55)
tangerine	#f28400	(242, 132, 0)	(0.95, 0.52, 0.00)
taupe	#473d33	(71, 61, 51)	(0.28, 0.24, 0.20)
teal-green	#006d5b	(0, 109, 91)	(0.00, 0.43, 0.36)
turquoise	#30d6c6	(48, 214, 198)	(0.19, 0.84, 0.78)
yellow	#ffff00	(255, 255, 0)	(1.00, 1.00, 0.00)

Color Name Cheat Sheet:

Color Utilitites

viren2d.axis_color(axis: object) → viren2d.Color

Returns a default color for the \(x\), \(y\), or \(z\) axis.

Can be used, for example, to visualize the origin/orientation of the world coordinate system via differently colored arrows.

Current axis colors: \(x\), \(y\), and \(z\)

Corresponding C++ API: viren2d::Color::CoordinateAxisColor.

Parameters:: axis – Either the character code of the axis ('x', 'y', or 'z'), or its zero-based index as int.

viren2d.color_from_object_category(category: str, colormap: viren2d.ColorMap = viren2d.ColorMap('glasbey-dark')) → viren2d.Color: Alias of viren2d.Color.from_object_category().

viren2d.color_from_object_id(id: int, colormap: viren2d.ColorMap = viren2d.ColorMap('glasbey-dark')) → viren2d.Color: Alias of viren2d.Color.from_object_id().

viren2d.fade_out_linear(value: float) → float

Color transition function for viren2d.Painter.draw_trajectory().

Can be used to compute the color mixing weight for the color transition of fading trajectories.

Corresponding C++ API: viren2d::ColorFadeOutLinear.

Returns:: The input value, i.e. \(y = \text{value}\).
Return type:: float

viren2d.fade_out_logarithmic(value: float) → float

Color transition function for viren2d.Painter.draw_trajectory().

Can be used to compute the color mixing weight for the color transition of fading trajectories.

Corresponding C++ API: viren2d::ColorFadeOutLogarithmic.

Returns:: The logarithmic factor \(y=\operatorname{log}_{10}(0.9 * \text{value} + 1)\).
Return type:: float

viren2d.fade_out_quadratic(value: float) → float

Color transition function for viren2d.Painter.draw_trajectory().

Can be used to compute the color mixing weight for the color transition of fading trajectories.

Corresponding C++ API: viren2d::ColorFadeOutQuadratic.

Returns:: The quadratic factor \(y = \text{value}^2\).
Return type:: float

viren2d.object_category_names() → List[str]: Alias of viren2d.Color.object_category_names().

viren2d.rgba(red: float, green: float, blue: float, alpha: float = 1.0) → viren2d.Color

Creates a Color from \(r,g,b,a \in [0,1]\).

Corresponding C++ API: viren2d::rgba.

viren2d.RGBa(red: float, green: float, blue: float, alpha: float = 1.0) → viren2d.Color

Creates a Color from \(R,G,B \in [0, 255]\) and alpha \(a \in [0, 1]\).

Corresponding C++ API: viren2d::RGBa.
