Defining Styles

`viren2d.ArrowStyle`	How an arrow should be drawn.
`viren2d.BoundingBox2DStyle`	How a 2D bounding box should be drawn."
`viren2d.LineStyle`	How a line/contour should be drawn.
`viren2d.MarkerStyle`	How a marker/keypoint should be drawn.
`viren2d.TextStyle`	How text should be rendered.

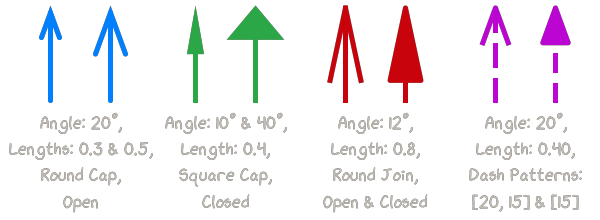

Arrow Style

class viren2d.ArrowStyle

Bases: LineStyle

How an arrow should be drawn.

Example

>>> style = viren2d.ArrowStyle(
>>>     width=5, color='black',
>>>     tip_length=0.3, tip_angle=20,
>>>     tip_closed=True, double_headed=False,
>>>     dash_pattern=[], dash_offset=0.0,
>>>     cap='round', join='miter')

Methods:

`__eq__`	Checks for equality.
`__getstate__`
`__init__`	Creates a customized arrow style.
`__ne__`	Checks for inequality.
`__setstate__`	`ArrowStyle` instances can be pickled.
`as_dict`	Returns a dictionary representation.
`copy`	Returns a deep copy.
`detailed_str`	Returns a verbose string representation to facilitate debugging.
`is_dashed`	Checks if this style contains a dash stroke pattern.
`is_valid`	Checks if the style would lead to a drawable arrow.
`tip_length_for_shaft`	Returns the length of the arrow head for the given shaft length.

Attributes:

`cap`	How to render the endpoints" of the line (or dash strokes).
`color`	Color of the line.
`dash_offset`	Offset into the pattern at which the dash stroke begins.
`dash_pattern`	Dash pattern defined as list of on/off strokes.
`double_headed`	If `True`, arrow heads will be drawn on both ends.
`join`	How to render the junctions of the line segments.
`tip_angle`	Interior angle (in degrees) between shaft and tip.
`tip_closed`	If `True`, the arrow head will be filled.
`tip_length`	Length of the arrow tip.
`width`	Width/thickness in pixels.

__eq__(self: viren2d.ArrowStyle, arg0: viren2d.ArrowStyle) → bool: Checks for equality.

__getstate__(self: viren2d.ArrowStyle) → tuple

__init__(self: viren2d.ArrowStyle, width: float = 2.0, color: viren2d.Color = viren2d.Color(red=0, green=0.5, blue=1, alpha=1), tip_length: float = 0.2, tip_angle: float = 20.0, tip_closed: bool = False, double_headed: bool = False, dash_pattern: List[float] = [], dash_offset: float = 0.0, cap: viren2d.LineCap = <LineCap.Round>, join: viren2d.LineJoin = <LineJoin.Miter>) → None

Creates a customized arrow style.

Parameters:

width – Width in pixels as float.
color – Arrow color as Color.
tip_length – Length of the arrow tip as float. If it is between [0, 1], it is interpreted as percentage of the shaft length. Otherwise, it represents the absolute length in pixels.
tip_angle – Interior angle between shaft and tip, specified in degrees as float.
tip_closed – Set True to fill the tip (type bool).
double_headed – Set True to draw arrow tips on both ends of the shaft (type bool).
dash_pattern – Dash pattern defined as list of float, specifying the on/off strokes. Refer to the documentation of the class member dash_pattern for details.
dash_offset – Optional offset (length as float) into the pattern, at which the dash stroke begins. Refer to the class member dash_offset for details.
cap – A LineCap enum, specifying how to render the line endpoints. This parameter can also be set using the corresponding string representation, e.g. 'round'.
join – A LineJoin enum, specifying how to render the junctions of multi-segment lines. This parameter can also be set using the corresponding string representation, e.g. 'miter'.

__ne__(self: viren2d.ArrowStyle, arg0: viren2d.ArrowStyle) → bool: Checks for inequality.

__setstate__(self: viren2d.ArrowStyle, arg0: tuple) → None: ArrowStyle instances can be pickled.

as_dict(self: viren2d.ArrowStyle) → dict: Returns a dictionary representation.

property cap

How to render the endpoints” of the line (or dash strokes).

In addition to the enumeration values, you can use the corresponding string representation to set this member:

>>> style.cap = viren2d.LineCap.Round
>>> style.cap = 'round'

Type:: LineCap

property color

Color of the line.

Example:

>>> style.color = viren2d.Color(1, 0, 1)
>>> style.color = viren2d.RGBa(255, 0, 255)
>>> style.color = 'magenta'

Type:: Color

copy(self: viren2d.ArrowStyle) → viren2d.ArrowStyle

Returns a deep copy.

Corresponding C++ API: Copy constructor of viren2d::ArrowStyle.

property dash_offset

Offset into the pattern at which the dash stroke begins.

If the strokes of a dash_pattern do not align nicely, adjust this offset (measured in pixels).

Type:: float

property dash_pattern

Dash pattern defined as list of on/off strokes.

A dash pattern is a list of positive values. Each value defines the length (in pixels) of alternating on and off segments of the line. For solid lines, this list must be empty.

>>> style.dash_pattern = [20, 30, 40, 10] # Would result in:
'__   ____ __   ____ __   ____ __   ____ __   ____ __   ____ ...'

Type:: list[float]

detailed_str(self: viren2d.LineStyle) → str: Returns a verbose string representation to facilitate debugging.

property double_headed

If True, arrow heads will be drawn on both ends.

Type:: bool

is_dashed(self: viren2d.LineStyle) → bool: Checks if this style contains a dash stroke pattern.

is_valid(self: viren2d.ArrowStyle) → bool: Checks if the style would lead to a drawable arrow.

property join

How to render the junctions of the line segments.

In addition to the enumeration values, you can use the corresponding string representation to set this member:

>>> style.join = viren2d.LineJoin.Miter
>>> style.cap = 'miter'

Type:: LineJoin

property tip_angle

Interior angle (in degrees) between shaft and tip.

Type:: float

property tip_closed

If True, the arrow head will be filled.

Type:: bool

property tip_length

Length of the arrow tip.

If the value is between [0, 1], it is interpreted as percentage of the arrow’s shaft length. Otherwise, it represents the absolute length in pixels.

Type:: float

tip_length_for_shaft(self: viren2d.ArrowStyle, shaft_length: float) → float: Returns the length of the arrow head for the given shaft length.

property width

Width/thickness in pixels.

Due to the discrete pixel grid and the internal drawing conventions, odd line widths usually avoid anti-aliasing effects.

Type:: float

Bounding Box Style

Warning

TODO documentation + cheat sheet

class viren2d.BoundingBox2DStyle

How a 2D bounding box should be drawn.”

Example

>>> line_style = viren2d.LineStyle(
>>>   width=7, color='navy-blue',
>>>   dash_pattern=[], dash_offset=0.0,
>>>   cap='round', join='miter')
>>> text_style = viren2d.TextStyle(
>>>   family='monospace', size=18,
>>>   color='navy-blue', bold=True,
>>>   italic=False, line_spacing=1.1,
>>>   halign='left', valign='top')
>>> box_style = viren2d.BoundingBox2DStyle(
>>>   line_style=line_style, text_style=text_style,
>>>   box_fill_color='same!20', text_fill_color='white!60',
>>>   clip_label=True)

Methods:

`__eq__`	Checks for equality.
`__getstate__`
`__init__`	Creates a customized bounding box style.
`__ne__`	Checks for inequality.
`__setstate__`	`BoundingBox2DStyle` instances can be pickled.
`copy`	Returns a deep copy.
`is_valid`	Returns `True` if the style allows rendering a 2D bounding box.

Attributes:

`box_fill_color`	Fill color of the bounding box.
`clip_label`	Set to `True` to clip the label at the bounding box edges.
`label_padding`	Padding between bounding box edges and label text.
`line_style`	How to draw the bounding box contour.
`text_fill_color`	Fill color of the text box, i.e. the label background.
`text_style`	How to render the label.

__eq__(self: viren2d.BoundingBox2DStyle, arg0: viren2d.BoundingBox2DStyle) → bool: Checks for equality.

__getstate__(self: viren2d.BoundingBox2DStyle) → tuple

__init__(self: viren2d.BoundingBox2DStyle, line_style: viren2d.LineStyle = <LineStyle(2.0px, #007fff, solid)>, text_style: viren2d.TextStyle = <TextStyle("monospace", 16px, ls=1.2, left, top, #000000)>, box_fill_color: viren2d.Color = viren2d.Color.Same.with_alpha(0.1), text_fill_color: viren2d.Color = viren2d.Color.Same.with_alpha(0.5), label_padding: viren2d.Vec2d = viren2d.Vec2d(5, 5), clip_label: bool = True) → None

Creates a customized bounding box style.

Parameters:

line_style – A LineStyle specifying how to render the box outline.
text_style – A TextStyle specifying how to render the label text.
box_fill_color – Optional Color to fill the box.
text_fill_color – Optional Color to fill the background of the label.
label_padding – Padding between the nearest bounding box edges and the label as Vec2d.
clip_label – If True, the label will be clipped if it exceeds the bounding box.

__ne__(self: viren2d.BoundingBox2DStyle, arg0: viren2d.BoundingBox2DStyle) → bool: Checks for inequality.

__setstate__(self: viren2d.BoundingBox2DStyle, arg0: tuple) → None: BoundingBox2DStyle instances can be pickled.

property box_fill_color

Fill color of the bounding box.

Type:: Color

property clip_label

Set to True to clip the label at the bounding box edges.

Type:: bool

copy(self: viren2d.BoundingBox2DStyle) → viren2d.BoundingBox2DStyle

Returns a deep copy.

Corresponding C++ API: Copy constructor of viren2d::BoundingBox2DStyle.

is_valid(self: viren2d.BoundingBox2DStyle) → bool: Returns True if the style allows rendering a 2D bounding box.

property label_padding

Padding between bounding box edges and label text.

Type:: Vec2d

property line_style

How to draw the bounding box contour.

Type:: LineStyle

property text_fill_color

Fill color of the text box, i.e. the label background.

Type:: Color

property text_style

How to render the label.

Type:: TextStyle

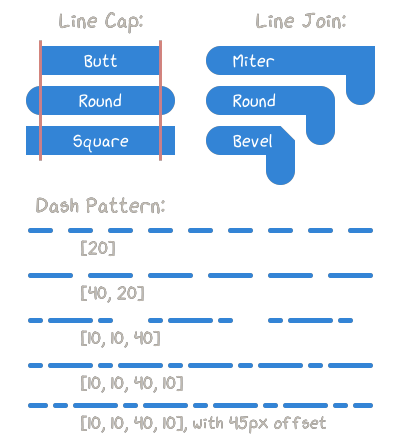

Line Style

class viren2d.LineStyle

How a line/contour should be drawn.

Note that several draw_xxx methods of the Painter also accept the special member LineStyle.Invalid, which indicates that a shape should only be filled, but it’s contour should not be drawn. Alternatively, None will also be implicitly converted to LineStyle.Invalid wherever a LineStyle object is expected.

Set the line width to an odd value to avoid anti-aliasing effects.

Example

>>> style = viren2d.LineStyle(
>>>     width=7, color='crimson',
>>>     dash_pattern=[20, 10], dash_offset=0.0,
>>>     cap='round', join='miter')

Note that depending on the selected cap (or join), the corresponding line (or joints) may start/end not exactly where you specified. If you want pixel-accurate start/end in combination with a particular cap/join, use cap_offset() (or join_offset()). For example:

>>> # Choose a cap which results in an offset:
>>> line_style = viren2d.LineStyle(cap='round')
>>>
>>> # Endpoints of our line:
>>> start = viren2d.Vec2d(10, 10)
>>> end = viren2d.Vec2d(100, 100)
>>>
>>> # Now, to draw a line exactly from `start` to `end`,
>>> # we adjust the endpoints:
>>> unit_dir = start.direction_vector(end).unit_vector()
>>> start += line_style.cap_offset() * unit_dir
>>> end -= line_style.cap_offset() * unit_dir

Methods:

`__eq__`	Checks for equality.
`__getstate__`
`__init__`	Overloaded function.
`__ne__`	Checks for inequality.
`__setstate__`	`LineStyle` instances can be pickled.
`as_dict`	Returns a dictionary representation.
`cap_offset`	Computes how much the line cap will extend the line's start/end.
`copy`	Returns a deep copy.
`detailed_str`	Returns a verbose string representation to facilitate debugging.
`is_dashed`	Checks if this style contains a dash stroke pattern.
`is_valid`	Checks if the style would lead to a drawable line.
`join_offset`	Computes how much a line join will extend the joint.

Attributes:

`cap`	How to render the endpoints" of the line (or dash strokes).
`color`	Color of the line.
`dash_offset`	Offset into the pattern at which the dash stroke begins.
`dash_pattern`	Dash pattern defined as list of on/off strokes.
`join`	How to render the junctions of the line segments.
`width`	Width/thickness in pixels.

__eq__(self: viren2d.LineStyle, arg0: viren2d.LineStyle) → bool: Checks for equality.

__getstate__(self: viren2d.LineStyle) → tuple

__init__(*args, **kwargs)

Overloaded function.

__init__(self: viren2d.LineStyle, width: float = 2.0, color: viren2d.Color = viren2d.Color(red=0, green=0.5, blue=1, alpha=1), dash_pattern: List[float] = [], dash_offset: float = 0.0, cap: viren2d.LineCap = <LineCap.Butt>, join: viren2d.LineJoin = <LineJoin.Miter>) -> None

Creates a customized line style.

Parameters:

width – Width in pixels as float.
color – Line color as Color.
dash_pattern – Dash pattern defined as list[float] of on/off strokes, refer to the class member dash_pattern for details.
dash_offset – Optional offset into the pattern, at which the dash stroke begins (as float). Refer to the class member dash_offset for details.
cap – A LineCap enum, specifying how to render the line endpoints. This parameter can also be set using the corresponding string representation, e.g. 'round'.
join – A LineJoin enum, specifying how to render the junctions of multi-segment lines. This parameter can also be set using the corresponding string representation, e.g. 'miter'.

__init__(self: viren2d.LineStyle, none: None) -> None
Overloaded constructor to implicitly convert None to viren2d.LineStyle.Invalid.

Several drawing methods of the Painter support skipping the contour and only filling a shape. For example:
>>> painter.draw_rect(rect, line_style=None, fill_color='blue!40')

__ne__(self: viren2d.LineStyle, arg0: viren2d.LineStyle) → bool: Checks for inequality.

__setstate__(self: viren2d.LineStyle, arg0: tuple) → None: LineStyle instances can be pickled.

as_dict(self: viren2d.LineStyle) → dict

Returns a dictionary representation.

Convenience method to initialize an ArrowStyle from a LineStyle via dictionary unpacking (aka splat operator):

>>> arrow_style = viren2d.ArrowStyle(
>>>     **line_style.as_dict(),
>>>     tip_length=0.3)

property cap

How to render the endpoints” of the line (or dash strokes).

In addition to the enumeration values, you can use the corresponding string representation to set this member:

>>> style.cap = viren2d.LineCap.Round
>>> style.cap = 'round'

Type:: LineCap

cap_offset(self: viren2d.LineStyle) → float: Computes how much the line cap will extend the line’s start/end.

property color

Color of the line.

Example:

>>> style.color = viren2d.Color(1, 0, 1)
>>> style.color = viren2d.RGBa(255, 0, 255)
>>> style.color = 'magenta'

Type:: Color

copy(self: viren2d.LineStyle) → viren2d.LineStyle

Returns a deep copy.

Corresponding C++ API: Copy constructor of viren2d::LineStyle.

property dash_offset

Offset into the pattern at which the dash stroke begins.

If the strokes of a dash_pattern do not align nicely, adjust this offset (measured in pixels).

Type:: float

property dash_pattern

Dash pattern defined as list of on/off strokes.

A dash pattern is a list of positive values. Each value defines the length (in pixels) of alternating on and off segments of the line. For solid lines, this list must be empty.

>>> style.dash_pattern = [20, 30, 40, 10] # Would result in:
'__   ____ __   ____ __   ____ __   ____ __   ____ __   ____ ...'

Type:: list[float]

detailed_str(self: viren2d.LineStyle) → str: Returns a verbose string representation to facilitate debugging.

is_dashed(self: viren2d.LineStyle) → bool: Checks if this style contains a dash stroke pattern.

is_valid(self: viren2d.LineStyle) → bool: Checks if the style would lead to a drawable line.

property join

How to render the junctions of the line segments.

In addition to the enumeration values, you can use the corresponding string representation to set this member:

>>> style.join = viren2d.LineJoin.Miter
>>> style.cap = 'miter'

Type:: LineJoin

join_offset(self: viren2d.LineStyle, interior_angle: float, miter_limit: float = 10.0) → float

Computes how much a line join will extend the joint.

The interior_angle is the angle between two line segments in degrees. This method needs to know the miter_limit because Cairo switches from MITER to BEVEL if the miter_limit is exceeded. Refer to the Cairo documentation for details.

property width

Width/thickness in pixels.

Due to the discrete pixel grid and the internal drawing conventions, odd line widths usually avoid anti-aliasing effects.

Type:: float

Marker Style

class viren2d.MarkerStyle

How a marker/keypoint should be drawn.

Example

>>> style = viren2d.MarkerStyle(
>>>     marker='*', size=10, color='navy-blue!80',
>>>     thickness=1, filled=True,
>>>     cap='round', join='miter')

Methods:

`__eq__`	Checks for equality.
`__getstate__`
`__init__`	Creates a customized marker style.
`__ne__`	Checks for inequality.
`__setstate__`	`MarkerStyle` instances can be pickled.
`cap_offset`	Computes how much the line cap will extend the start/end of the lines.
`copy`	Returns a deep copy.
`is_filled`	Returns `True` if this marker would be filled.
`is_valid`	Checks if this style would lead to a drawable marker.
`join_offset`	Computes how much a line join will extend the joint.

Attributes:

`bg_border`	Can be used to improve the contrast of the marker.
`bg_color`	Can be used to improve the contrast, see `bg_border`.
`cap`	How to render the endpoints of the marker's contour.
`color`	Color of the marker's contour or fill (depending on `filled`).
`filled`	If `True`, the marker should be filled with `color`.
`join`	How to render the junctions of the marker's contour.
`marker`	Marker shape.
`size`	Marker size in pixels.
`thickness`	Thickness of the marker's contour.

__eq__(self: viren2d.MarkerStyle, arg0: viren2d.MarkerStyle) → bool: Checks for equality.

__getstate__(self: viren2d.MarkerStyle) → tuple

__init__(self: viren2d.MarkerStyle, marker: viren2d.Marker = viren2d.Marker('o'), size: float = 10.0, thickness: float = 3.0, color: viren2d.Color = viren2d.Color(red=0, green=0.5, blue=1, alpha=1), filled: bool = False, bg_border: float = 0.0, bg_color: viren2d.Color = viren2d.Color.Invalid, cap: viren2d.LineCap = <LineCap.Round>, join: viren2d.LineJoin = <LineJoin.Miter>) → None

Creates a customized marker style.

Parameters:

marker – Shape as Marker enumeration value or its character representation.
size – Marker size in pixels as float.
thickness – Width/thickness of the contour in pixels as float.
color – The Color used for drawing its contour or filling.
filled – If True (and the shape allwos), the marker will be filled.
bg_border – Can be used to improve the contrast of the marker. If bg_color is valid, a circle (or square for 's') will be drawn behind the actual marker. Size of this circle will be size + 2 * bg_border.
bg_color – The Color to improve the contrast, see bg_thickness.
cap – A LineCap enum, specifying how to render the line endpoints. This parameter can also be set via the corresponding string representation, e.g. 'round'.
join – A LineJoin enum, specifying how to render the junctions of multi-segment lines. This parameter can also be set via the corresponding string representation, e.g. 'miter'.

__ne__(self: viren2d.MarkerStyle, arg0: viren2d.MarkerStyle) → bool: Checks for inequality.

__setstate__(self: viren2d.MarkerStyle, arg0: tuple) → None: MarkerStyle instances can be pickled.

property bg_border

Can be used to improve the contrast of the marker. If bg_color is valid, a circle (or square for 's') will be drawn behind the actual marker. Size of this circle will be size + 2 * bg_border.

Type:: float

property bg_color

Can be used to improve the contrast, see bg_border.

Type:: Color

property cap

How to render the endpoints of the marker’s contour.

In addition to the enumeration values, you can use the corresponding string representation to set this member:

>>> style.cap = viren2d.LineCap.Round
>>> style.cap = 'round'

Type:: LineCap

cap_offset(self: viren2d.MarkerStyle) → float: Computes how much the line cap will extend the start/end of the lines.

property color

Color of the marker’s contour or fill (depending on filled).

Type:: Color

copy(self: viren2d.MarkerStyle) → viren2d.MarkerStyle

Returns a deep copy.

Corresponding C++ API: Copy constructor of viren2d::MarkerStyle.

property filled

If True, the marker should be filled with color.

Note that some marker shapes cannot be filled (e.g '+' or 'o'), whereas some shapes must be filled (e.g. '.'). For such shapes, the value of filled will be ignored.

Type:: bool

is_filled(self: viren2d.MarkerStyle) → bool

Returns True if this marker would be filled.

Note that this may differ from its filled member: Some marker shapes cannot be filled (e.g '+' or 'o'), whereas some shapes must be filled (e.g. '.').

is_valid(self: viren2d.MarkerStyle) → bool: Checks if this style would lead to a drawable marker.

property join

How to render the junctions of the marker’s contour.

In addition to the enumeration values, you can use the corresponding string representation to set this member:

>>> style.join = viren2d.LineJoin.Miter
>>> style.join = 'miter'

Type:: LineJoin

join_offset(self: viren2d.MarkerStyle, interior_angle: float, miter_limit: float = 10.0) → float

Computes how much a line join will extend the joint.

The interior_angle is the angle between two line segments in degrees. This method needs to know the miter_limit because Cairo switches from MITER to BEVEL if the miter_limit is exceeded. Refer to the Cairo documentation for details.

property marker

Marker shape.

In addition to the enumeration values, you can use the character codes to set this member:

>>> style.marker = viren2d.Marker.Cross
>>> style.marker = 'x'

Type:: Marker

property size

Marker size in pixels.

Type:: float

property thickness

Thickness of the marker’s contour. May be ignored if the shape is fillable and you set filled, i.e. filling takes precedence over drawing the outline.

Type:: float

Text Style

Cheat Sheet for Anchor:

class viren2d.TextStyle

How text should be rendered.

Corresponding C++ API: viren2d::TextStyle.

Example

>>> text_style = viren2d.TextStyle(
>>>     family='monospace', size=18,
>>>     color='navy-blue', bold=True,
>>>     italic=False, line_spacing=1.1,
>>>     halign='left', valign='top')

Methods:

`__eq__`	Checks for equality.
`__getstate__`
`__init__`	Creates a customized text style.
`__ne__`	Checks for inequality.
`__setstate__`	`TextStyle` instances can be pickled.
`copy`	Returns a deep copy.
`is_valid`	Returns `True` if the style allows rendering text.

Attributes:

`bold`	If `True`, the font weight will be bold.
`color`	Color of the text glyphs.
`family`	Name of the font family.
`halign`	Horizontal alignment of multi-line text.
`italic`	If `True`, the font slant will be italic.
`line_spacing`	Scaling factor of the vertical distance between consecutive lines of text.
`size`	Font size in pixels.
`valign`	Vertical alignment of multi-line text.

__eq__(self: viren2d.TextStyle, arg0: viren2d.TextStyle) → bool: Checks for equality.

__getstate__(self: viren2d.TextStyle) → tuple

__init__(self: viren2d.TextStyle, size: int = 16, family: str = 'monospace', color: viren2d.Color = viren2d.Color(red=0, green=0, blue=0, alpha=1), bold: bool = False, italic: bool = False, line_spacing: float = 1.2, halign: viren2d.HorizontalAlignment = viren2d.HorizontalAlignment('left'), valign: object = viren2d.VerticalAlignment('top')) → None

Creates a customized text style.

Parameters:

size – Font size in pixels as float.
family – Name of the font family. Refer to the class member family for details.
color – Text color as Color.
bold – If True, the font weight will be bold (type bool).
italic – If True, the font slant will be italic (type bool).
line_spacing – Scaling factor of the vertical distance between consecutive lines of text.
halign – Horizontal alignment of multi-line text as HorizontalAlignment enum. This parameter also accepts the corresponding string representation.
valign – Vertical alignment of multi-line text as VerticalAlignment enum. This parameter also accepts the corresponding string representation. Only affects alignment of fixed-size text boxes, see draw_text_box().

__ne__(self: viren2d.TextStyle, arg0: viren2d.TextStyle) → bool: Checks for inequality.

__setstate__(self: viren2d.TextStyle, arg0: tuple) → None: TextStyle instances can be pickled.

property bold

If True, the font weight will be bold.

Corresponding C++ API: viren2d::TextStyle::bold.

Type:: bool

property color

Color of the text glyphs.

Corresponding C++ API: viren2d::TextStyle::color.

Type:: Color

copy(self: viren2d.TextStyle) → viren2d.TextStyle

Returns a deep copy.

Corresponding C++ API: Copy constructor of viren2d::TextStyle.

property family

Name of the font family.

Most available fonts on the system should be supported. If you experience issues, try the generic CSS2 family names first, e.g. serif, sans-serif, or monospace. Refer to the Cairo documentation for more details.

Corresponding C++ API: viren2d::TextStyle::family.

Type:: str

property halign

Horizontal alignment of multi-line text.

In addition to the enumeration values, you can use the string representations (left|west, center|middle, right|east) to set this member:

>>> style.halign = viren2d.HorizontalAlignment.Center
>>> style.halign = 'center'

Corresponding C++ API: viren2d::TextStyle::halign.

Type:: HorizontalAlignment

is_valid(self: viren2d.TextStyle) → bool: Returns True if the style allows rendering text.

Corresponding C++ API: viren2d::TextStyle::IsValid.

property italic

If True, the font slant will be italic.

Corresponding C++ API: viren2d::TextStyle::italic.

Type:: bool

property line_spacing

Scaling factor of the vertical distance between consecutive lines of text.

Corresponding C++ API: viren2d::TextStyle::line_spacing.

Type:: float

property size

Font size in pixels.

Corresponding C++ API: viren2d::TextStyle::size.

Type:: float

property valign

Vertical alignment of multi-line text. Will only affect the output of fixed-size text boxes, see draw_text_box().

In addition to the enumeration values, you can use the string representations (top|north, center|middle, bottom|south) to set this member:

>>> style.valign = viren2d.VerticalAlignment.Center
>>> style.valign = 'center'

Corresponding C++ API: viren2d::TextStyle::valign.

Type:: VerticalAlignment
