Relief Shading

Multiplicative relief shading is provided via relief_shading(). This technique can notably enhance the perception of shape induced by the shading:

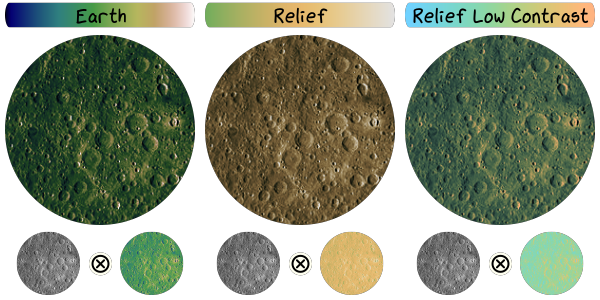

Exemplary relief shading

This example uses relief shading with different color maps to show the topographic structure of (a small part of) the lunar farside, which was captured by the Lunar Reconnaissance Orbiter in 2011 and published by NASA/GSFC/Arizona State University. The smaller images below each main visualization show the inputs to relief_shading(), i.e. the relief and its false color representation. Note how the two isoluminant relief color maps are not useful on their own, but induce a proper shape perception after shading.

Python code for this visualization example:

 1moon_full = viren2d.load_image_uint8(VIREN2D_DATA_PATH / 'lunar-farside.jpg')
 2moon = moon_full.roi(left=200, top=200, width=200, height=200)
 3
 4cmap_names = ['Earth', 'Relief', 'Relief Low Contrast']
 5
 6column_width = (cwidth - (len(cmap_names) * 10)) / len(cmap_names)
 7scale = column_width / moon.width
 8
 9x = column_width / 2 + 5
10for cmap_name in cmap_names:
11    # Show the color bar on top of the shaded relief:
12    colorbar = viren2d.colorize_scaled(
13        data=colorbar_data, colormap=cmap_name, low=0, high=255)
14
15    painter.draw_image(
16        colorbar, position=(x, 15), anchor='center',
17        clip_factor=0.5, scale_x=column_width/colorbar.width)
18
19    painter.draw_text(
20        [cmap_name], position=(x, 15), anchor='center',
21        text_style=text_style)
22
23    # Colorize & shade the relief of the farside of the moon:
24    vis = viren2d.colorize_scaled(
25        data=moon, colormap=cmap_name)
26
27    relief = viren2d.relief_shading(relief=moon, colorized=vis)
28
29    painter.draw_image(
30        relief, position=(x, 35), anchor='top', clip_factor=1,
31        scale_x=scale, scale_y=scale)
32
33    # Also show the inputs to relief shading:
34    painter.draw_image(
35        moon, position=(x - 20, cheight - 5), anchor='bottom-right',
36        clip_factor=1, scale_x=scale / 3, scale_y=scale / 3)
37
38    painter.draw_image(
39        vis, position=(x + 20, cheight - 5), anchor='bottom-left',
40        clip_factor=1, scale_x=scale / 3, scale_y=scale / 3)
41
42    # Draw a marker that looks like element-wise matrix multiplication:
43    pos_multiplier = (x, cheight - 5 - moon.width * scale / 6)
44    painter.draw_marker(
45        position=pos_multiplier,
46        marker_style=viren2d.MarkerStyle('.', size=23, color='ivory'))
47    painter.draw_marker(
48        position=pos_multiplier,
49        marker_style=viren2d.MarkerStyle('o', size=18, color='black', thickness=2))
50    painter.draw_marker(
51        position=pos_multiplier,
52        marker_style=viren2d.MarkerStyle('x', size=12, color='black', thickness=2))
