Text & Text Boxes

Text can be rendered via draw_text() or draw_text_box().

Text Positioning

To position text on the canvas, you simply need a reference position (i.e. \(x`\) and \(y\) coordinate) and an Anchor. The following example shows text boxes along with the corresponding anchor and reference positions. These reference positions are highlighted via draw_marker():

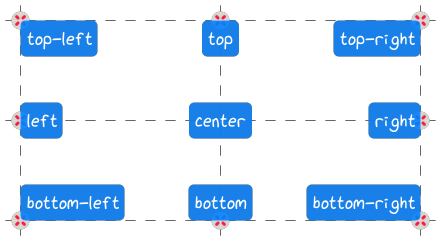

Text anchors

Corresponding Python code:

 1x = offset_x
 2y = offset_y
 3padding = (6, 6)
 4for anchor in viren2d.Anchor.list_all():
 5    pos = (x, y)
 6    if anchor != viren2d.Anchor.Center:
 7        painter.draw_marker(pos, marker_style)
 8
 9    painter.draw_text_box(
10        [str(anchor)], pos, anchor=anchor, text_style=text_style,
11        padding=padding, rotation=0, line_style=viren2d.LineStyle.Invalid,
12        fill_color='azure!90', radius=0.15)
13
14    x += delta_x
15    if x >= canvas_width:
16        x = offset_x
17        y += delta_y

Multi-Line Text

The following example shows the different alignment options of multi-line text boxes. These lines are an excerpt from Revelation, a Visual Poem.

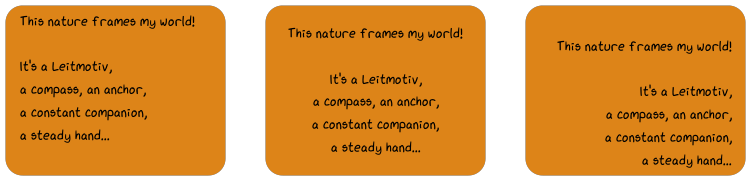

Multi-line Text Alignment

This visualization has been created with the following Python code:

 1poem = [
 2    'This nature frames my world!',
 3    '',
 4    "It's a Leitmotiv,",
 5    'a compass, an anchor,',
 6    'a constant companion,',
 7    'a steady hand...'
 8]
