Scaled Colorization

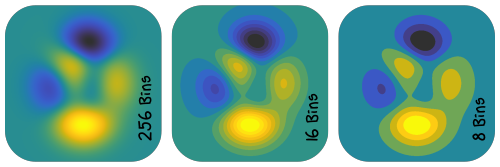

Scaled colorization divides the data range into a discrete number of evenly spaced bins which are then used to look up the corresponding color from a color map. The following example uses the Gouldian color map to colorize the peaks example data:

Exemplary colorization

Corresponding Python code:

 1peaks = viren2d.peaks()
 2canvas_width = 500
 3cmap_bins = [256, 16, 8]
 4column_width = (canvas_width - (len(cmap_bins) * 10)) / len(cmap_bins)
 5scale = column_width / peaks.width
 6
 7canvas_height = int(scale * peaks.height + 10.5)
 8painter = viren2d.Painter(
 9    width=canvas_width, height=canvas_height, color='white!0')
10
11text_style = viren2d.TextStyle(family='xkcd', size=18, color='black')
12
13x = column_width / 2 + 5
14for bins in cmap_bins:
15    vis = viren2d.colorize_scaled(
16        data=peaks, colormap='gouldian', low=-6.5, high=8, bins=bins)
17
18    painter.draw_image(
19        image=vis, position=(x, canvas_height / 2), anchor='center',
20        scale_x=scale, scale_y=scale, rotation=0, clip_factor=0.2)
21
22    painter.draw_text(
23        text=[f'{bins} Bins'], anchor='bottom-left', rotation=-90,
24        position=(x + column_width / 2 - 5, canvas_height * 0.85),
25        text_style=text_style)
26
27    x += column_width + 10
